Europe (West)

Here is the first page of Europe, the Western side :
Spain, Portugal, Canary islands, Madeira, Azores, Cape Verde, Ireland.

We start with the important guitar countries of Spain and Portugal, together with their islands in the Atlantic Ocean, on which similar instruments are played (including the Portuguese speaking Cape Verde, which would otherwise have been in the Africa page). Both Spain and Portugal "exported" in the 17th century their plucked instruments, which by then still had only 4 and 5 courses. This is the reason why so many South American instruments still have 4 or 5 double courses.
Also included on this page of Western Europe is Ireland.
The other not mentioned countries in this area just have the normal guitars, lutes, banjos and mandolins, which can be found on the general instrument pages. For more ethnic folk instruments of Europe see also dulcimers (on page steelguitars).

Go to Europe East for the countries in the East : Russia, Hungaria, Croatia Go to Europe South for the area of the South : Albania, Greece, Italy, Sardinia, Corsica

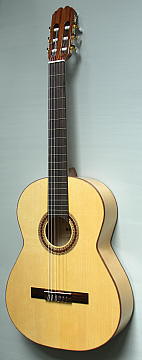

The flamenco guitar is usually quite similar in size and appearence to the classical guitar (see guitars1). In general the difference will be that it is slightly lighter and therefore sounds a bit sharper (less sustain).

The typical flamenco guitar will have "golpeadors" - some kind of protection (scratch plate) of the front, because part of the playing is tapping with the right hand ringfinger on the front. This scratch plate can be bright white, or nowadays just clear plastic. The placing of the golpeadors is not standard : sometimes more around the top of the soundhole, and sometimes on both sides (left and right). To make the guitar lighter, friction pegs were prefered to the normal guitar machines, but are now rare. The sides and back of the body are often made of lighter coloured wood, like cypress (or sycamore). The playing is usually quite virtuous, with left hand pulling-off and hammering-on for superfast passages, and right hand rolling fingers, damping with the hand, tapping on the front, etc.

Often a capodastre is used, to ease the use of open strings by playing in other modes, or to ease the singers voice.

Flamenco is a style of singing and dancing, which seems to have origins in Indian ragas, but also with lots of Arabian influence.

For more information about Spanish instruments, see tamborileros (in Spanish).

The guitarro is a small sized instrument with the shape of a guitar, but not like a requinto, and more like a cavaquinho or ukulele. The guitarro is used in the areas of Aragon, La Mancha, Andalusia and Murcia, and on the Baleares. They all belong to the same type, but there are small local variaties and much depends on the maker. Sometimes it is called guitarrico (in Aragon) or tiple (on Menorca). The guitarro is made like a miniature guitar, and properly varnished, not rustic like many ukuleles. The fretboard is flat with the front. Often the top of the front has an overlay of different wood. It can have tuning machines or tuning pegs from the back. Although originally the strings were made of gut, nowadays nylon is used. The guitarro may have just 4 or 5 single strings, but sometimes the 3 middle courses are double. The tuning is often like a guitar/ukulele : b' f#' d'' a'' e'', or : d" g" c" e" a". See for the local varieties in Spain : Tamborileros, and for the Baleares : see Morales.

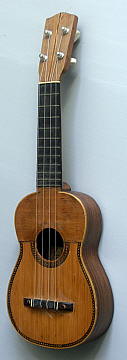

guitarrico example : bought via eBay, 2010 L=520 B=165 H=55mm scale 330mm

For more information about Spanish folk instruments see Lachacona.com.

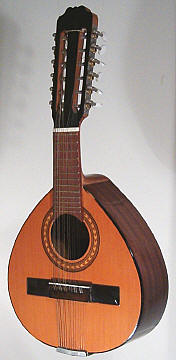

The bandurria is a small mandolin-like instrument, but differently tuned, and used for the popular Rondalla music. The bandurria can also be found in other countries : mainly in South America, but surprisingly also on the Philippines (see S.E.Asia).

The bandurria is made like a guitar, but in a teardrop shape, with a flat back. The neck is very short and the strings run over a saddle on the glued-on bridge (in guitar-style), but then continue to a metal stringholder on the edge of the body.

It has 6 double metal courses, and is tuned in 5-5-5-5-5 :
g#g# c'#c'# f'#f'# b'b' e''e'' a''a''

It is the smallest instrument of the Rondalla group, which also includes a (normal 6-string) guitar, a standing bass and a laud (bigger, and tuned an octave lower than the bandurria - see under).

Playing is with a plectrum, mainly playing the melody lines.

See for more information on Instrumentosdeplectro (in Spanish).

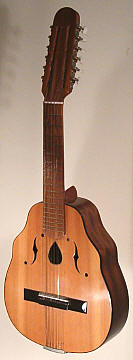

The laud is the bigger size bandurria, used to play in Rondalla music. The shape is very typical for this instrument. A similar instrument is played on the Philippines (see S.E.Asia) and Cuba (see CentralAmerica).

The laud is made like a guitar, with a flat back. The body has often a wavy outline on the sides, but you can also find them in a teardrop shape. The soundholes are usually two f-holes with a central teardrop, but nowadays they also make them with a guitar-like round soundhole.

As with the bandurria the strings run over a saddle on the glued-on bridge, then through holes in the bridge to a metal stringholder on the edge of the body.

The string length of a laud is about double that of the bandurria, so it is one octave lower. It has 6 double metal courses, tuned in 5-5-5-5-5 :
G#G# c#c# f#f# bb e'e' a'a'

The laud is played with a plectrum, playing chords and riffs in the Rondalla.       right : a teardrop shaped laud (picture from Todocoleccion)

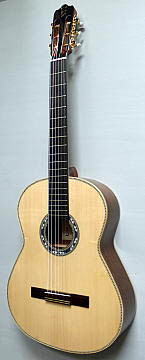

The (Spanish) guitar is in Portugal called the viola (see under). The guitarra is a mandolin shaped instrument, which is a descendant of the English guitar. The special - very typical - peghead/ tuningmachines are based on the ones used by the 18th century English maker Preston, and by some German Waldzittern.

The guitarra is made like a guitar, with a flat back. The fingerboard is usually quite rounded. The tuninghead is always made with a special type of tuning machines (almost solely found on Portuguese instruments). By turning the top screw, the hook (on which the end of the string is fastened) slides up and down to tune the string. From the back of the machines the peghead has a kind of sickle shape.

The metal strings run from the loop on the tuning machines over a loose bridge to a row of pins on a metal stringholder on the edge of the body.

There are two kinds of guitarra : the Lisboa and the Coimbra type.
The difference is the tuning, size and the end of the peghead.

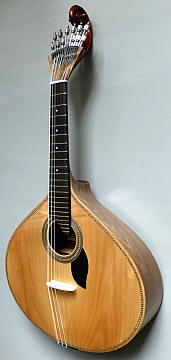

guitarra de Lisboa : - violin like scroll head - stringlength 460mm - tuning : dD aA bB ee aa bb

guitarra de Coimbra : - flat teardrop head - stringlength 490mm - tuning : cC gG aA dd gg aa

The guitarra is played with plectrums tied to the thumb and forefinger, and the tone is made to "sing" a lot by left hand vibrato. It is mainly used for the famous Fado music, in which it plays arpeggio chords to accompany the singing, but there are also many solos.

For more info about the guitarra portuguese see Fernandezmusic.com .

The example instrument has the bridge and nut made out of plastic.

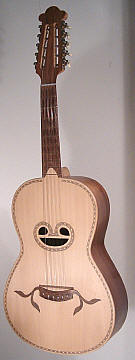

This is the most wellknown viola of Portugal : the viola braguesa, which is typical of northwestern Portugal around the town of Braga, between the Douro and Minho Rivers. So it is also called viola da Braga.

The sound hole of a viola braguesa is usually a half circle with two teardrops on top, but some may have a normal round sound hole. The bridge has a decorative "mustache", with two glued-on leaves on both sides.
The tuning head could have the vague shape of a three-foil, but (as with all Portuguese instruments) it can also be made like the guitarra portuguesa (Lisboa style), with its typical tuning machines, or with friction pegs, or slotted with normal guitar-like tuning machines. It all depends on the maker.

The bridge is very typical for all violas : the strings run first over a loose thin piece of wood (the actual bridge), then through gaps in the glued-on bridge and are then turned back and fixed with loops to pins (screws) on the bridge. The number of pins is not necessarily the number of strings, but is usually six.

Tuning of the viola braguesa is in 5-courses: c'c, g'g, a'a, d'd', g'g' (this is like the Coimbra-style guitarra tuning, omitting the highest course).

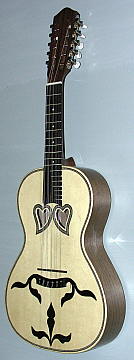

The viola amarantina is called after the northern town of Amarante in Minho Province. It seems not much used anymore.

This viola has two heart shaped soundholes, and is the only viola with the fingerboard continuing in the soundboard (but still flush with it). The frets above the tenth fret gets shorter, and are only under the highest strings.

The bridge is similar to the viola braguesa, with two glued-on leaves on both sides. This makes it different from the similar looking viola de diz cordes of Cape Verde and from the viola da terra used on the Azores, which both have a straight bridge. Usually there is also some inlay decoration beneath the bridge, in the shape of a flower with leaves.

The tuning of the 5 metal strings of the viola amarantina is in 5 courses :
d'd a'a b'b e'e' a'a' (like the guitarra tuning - see viola braguesa).

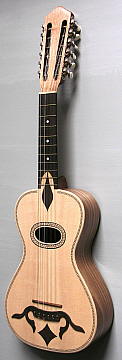

This is a viola from the area of Beira Litoral and is especially used around Coimbra. The main identification points are the oval shaped soundhole, a rather slender body shape, and the 12 strings - three are made of brass (12, 11 and 5th) and two are wound (10 and 7th).

The bridge often has some glued-on leaves on both sides, and some inlay beneath the bridge - but neither seems standard.

The 12 strings of the viola toeira are in a guitar-like tuning in 5 courses :
a'a'a d'd'd g'g b'b' e'e'.

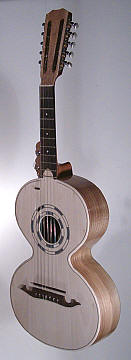

This viola is from the area of Castelo Branco, and can be easily identified. It has a very tight slim waist, with 10 strings on the tuning head and 2 extra (drone) strings fitted to the left side of the neck (near the body).

right : the two extra strings on the side of the neck, with the extra nut

The tuning of the 5 courses of the viola beiroa is :
d''d'' (shorts) aA d'd g'g bb d'd'.

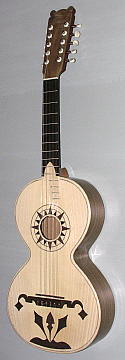

This viola campaniça is from the region of Vila Verde de Ficalho.

It has a tight slim waist and 10 strings, so it looks much like the viola beiroa, but it misses the short strings. It usually has some decoration of three stylised leaves under the bridge. The bridge has some extensions, ending in a square star shape.

The tuning head is flat, with friction pegs or machine tuners. Often there are still 12 of them, but only 10 are used for the 5 double courses (originally the 4th and 5th course were triple).

The tuning of the 5 double courses of the viola campaniça is quite special : c'c f'f c'c' e'e' g'g'. Playing is usually picking with only the thumb, and mainly to accompany singing. The viola campaniça seems to be still in popular use.   For more information see Almanaque (in Portuguese).

The cavaquinho [pronounced : kah-vah-keen-you] is the small guitar of Portugal. It is made like a small Spanish guitar, but the soundhole, bridge and tuning head may follow any of the types mentioned above under the violas and guitarra.

The fingerboard is flush with the front. Sometimes the top of the front is covered with different coloured wood like a scratchplate.

It has 4 metal strings, tuned sometimes like a' a' c#'' e'', or like d' b' g'' d''.

The cavaquinho is the grandfather of the ukulele : it first went to Madeira (in 1854, to become the braguinha) and then on to Hawaii (in 1879) to become the ukulele.

Cavaquinhos are also used in Cape Verde and Brazil.

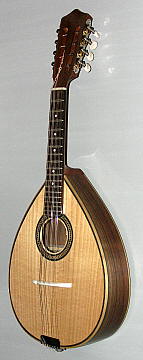

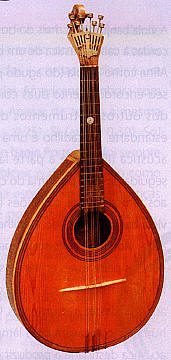

This instrument is the Portuguese mandolin. It comes (like the mandolin) in different sizes : bandolineta / bandolim / bandoleta / bandoloncelo / bandola.
It is popular both in Portugal itself, and on the islands of Madeira and the Azores.

The body shape is often more teardrop than the Italian types of mandolin, and it always has a flat back. The tuning head can be of all different types used for the violas, but usually it is a slotted head with machines.

The bandolim has the usual 4 double courses of metal strings, and is tuned and played like a normal mandolin.

This instrument is the Portuguese banjo and comes in different sizes and with a different number of strings (often with different names, like viola banjo / banjolim / banjola / banjo de acordes / banjo trompete.

There are banjos of cavaquinho-size with 4 single strings; a larger one with 4 single strings is a kind of tenor banjo : (banjo de acordes).
With 4 double strings and the size of a mandolin : the banjolim; a larger one with 4 double strings, the size of a mandola : the banjola.
With 6 strings as a guitar-like banjo : the viola banjo. They are all used for folk music.

Usually the body of these banjo's is made of a round wooden box (side and back), in which the "drum" with the metal rim and the skin front, are fixed with a screw. The body of the banjo trompete (which is about the same size as the banjolim,) is made of metal (front and side together), with a wooden back.

On the west coast of Africa (near Morocco) are the (Spanish) Canary Islands. Here a special kind of cavaquinho exists : the 5 string timple. It is mainly made and used on the island of Lanzarote, and has similarities with the 16th century renaissance guitar.

The timple has a strong vaulted back (which can also be found on the Mexican vihuela and some South American charangos). The peghead is either with friction pegs (from the back) or with tuning machines. There are only 7 frets, and the fingerboard is flush with the front. It has a glued-on bridge.

It has 5 nylon strings and the tuning is like a renaissance lute :
5-4-5-5 : g' c'' e' a' d''.

It is played by strumming chords, to accompany singing, usually in large folk groups, with guitars.

the vaulted back of the timple

On the Portuguese island of Madeira (just north of the Canary islands, more towards Portugal) they use three typical plucked instruments, that differ from the mainland Portuguese instruments. Note especially that the extra strip bridge is not used on the Madeira instruments.

The smallest of the three guitar-like instruments is a type of cavaquinho, with the name braguinha (or braguinã) - in fact "little braga" (see viola de braga). It is also called machete, or machete de braga. It seems to have arrived on the island from Portugal in 1854 and was taken to Hawaii in 1879, where it became the ukulele (but with the tuning of the rajão - see under).

The construction of a braguinha is like a tiny guitar, with a flat back and 4 metal strings. The tuning head can be flat with friction pegs from the back, or open like a guitar, with tuning machines. Sometimes the top half of the front is covered with different wood, like a scratchplate, but often it looks like a small rajão, so also with a raised fingerboard. The guitar-like bridge is glued to the front.

The tuning of the 4 metal strings is d' g' b' d'' (the 5-string banjo tuning).

The braguinha is played by strumming chords, to accompany folk singing.

The rajão is the slightly bigger relative of the braguinha, with 5 courses.

The rajão is made like a small guitar, with the fretboard slightly raised. It has friction pegs from the back or normal guitar-like tuning machines (2x3). The guitar-like bridge is glued to the front.

It has 6 metal strings in 5 courses : the first course is double. The tuning is guitar-like : d' g' c' e' a'a' .

The rajão is played by strumming chords, to accompany folk singing.

The story about the birth of the ukulele is that both the braguinha and the rajão sailed in 1879 to Hawaii. Here the ukulele developed, by getting its size from the braguinha, and its tuning from the rajão.
For the full story see : Coolhanduke, and for the ukulele see America north.

On Madeira they use besides the normal guitar (called violão) the viola, here with 9 metal strings in 5 courses (the second course is a single string).

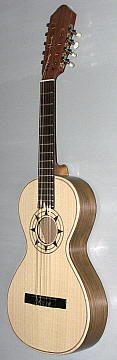

The viola de arame (or viola da Madeira) looks quite a lot like a normal spanish guitar (but a bit smaller and more slender), with a raised fingerboard and a glued-on bridge (so no separate strip, although you may see them on some models). The tuning head can be flat, with friction pegs from behind, or open like a guitar, with tuning machines on both sides. The guitar-like bridge is glued to the front.

The 9 strings are tuned in 5 courses in open G : gG dD gg b d'd'. Sometimes all the courses are double.

On the Portuguese islands of the Azores (northwest of Madeira, in the Atlantic Ocean) two special violas exist. One is the viola da terra, mainly found on the island São Miguel (although I have also seen it in shops on other islands), so another name for it is viola Micaelense.

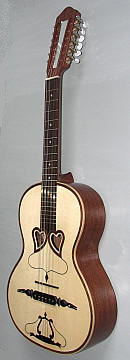

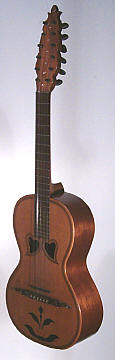

With the two heart shape soundholes the viola da terra looks quite similar to the viola amarantina, but it has 12 strings (not 10). The separate fingerboard is inlayed in the soundboard and the bridge ends in bird-like figures. It has a flower-like (or the more expensive models : a harp-like) inlay beneath the bridge.

The tuning head can be any shape of a viola, and sometimes it has a narrow strip of mirror in the middle.

It has 12 metal strings, in 5 courses in a kind of open g-tuning :
aaA d'd'd gg bb d'd'.

The viola da terra is mainly used to accompany singing in large groups with other stringed instruments. When played solo, only the thumb is used to pluck.   Left is an example I saw in a shop in São Miguel in 2011. I was told that due to the high humidity of the Azores, the better instruments are nowadays made on mainland Portugal. Right another (older) viola da terra I bought via eBay in 2004. This example instrument was probably made in USA, where many Azoreans emigrated to.

For lots of information see this weblog (in Portuguese).
Note that a quite similar viola is used on the Cape Verde Islands (see under).

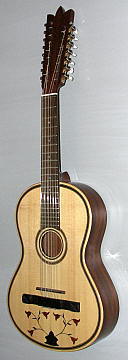

This viola is typical of the Azorean island of Terceira, and thus called viola da Terceira, or viola Terceirense. It comes in a version with 15 strings and one with even 18 strings. This viola is the only one with more than 5 courses.

The viola da Terceira is quite guitar-like, (also in size and tuning) with a raised fingerboard. Tuning is with friction pegs from behind, or with normal tuning machines. The bridge has no "mustaches" (and no pins), but decorative square blocks on both sides. Other decoration on the front is inlay flowers beneath the bridge.

15-string viola da terceira
Tuning is in 6 courses in the guitar-tuning : eeE, aaA, d'd'd, g'g, bb, e'e'.

18 string viola da terceira
Tuning is the same as the 15-string instrument, but a lower extra 7th course (with 3 strings) is added, which is tuned depending on the player.

The viola da terceira is used to accompany singing in large groups, with more stringed instruments.   Apparently, due to the high humidity of the Azores, the better instruments are nowadays made on mainland Portugal.

The republic of Cape Verde ("Cabo Verde") is a collection of small vulcanic islands off the coast of central Africa; therefore it should have been on the Africa page. However, I have put it on this page of West Europe, as it has more relations with the Portuguese instruments than the African ones.

Music on Cape Verde (which sounds very much like Brazilian and/or Portuguese music) is made in small groups with a guitar (violão), a violin, a (10 string) viola and a small cavaquinho. All the instruments are locally made, mainly on the island of São Vicente with the town Mindelo.

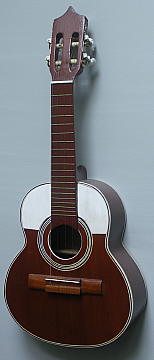

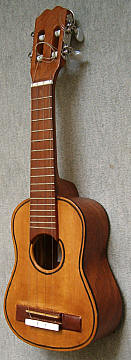

The cavaquinho on Cape Verde is usually more like the bigger size cavaquinho from Brazil (or even larger !), than the slender one from Portugal (although the string length for all is more or less the same). On the island Santo Antão I saw some smaller ones (see the example) which are more the size of the Portuguese cavaquinho.

The cavaquinhos are made like a small guitar, and have 4 metal strings with the tuning : d g' b' d'' (so no re-entrant tuning).

Most of the instruments have white lines around the body and around the soundholes. Just a few also have scratchplates (like the example). The bridge is not like the Portuguese cavaquinho with an extra strip of wood, but like the spanish guitar. The neck is much wider than the cavaquinhos from Brazil or Portugal.

The cavaquinhos are used to accompany singing by strumming and occasional a short solo.

Selection of instruments by the local maker Aniceto Gomes (in Mindelo) : a 12-string guitar, a cavaquinho, a viola de 10 cordas, two violãos; in the back: two bandolims, a cavaquinho, and a banjolim. (picture from his website)

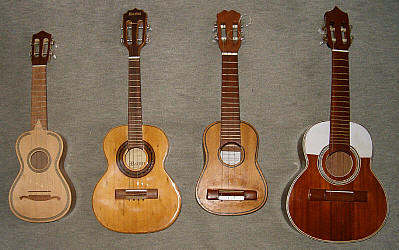

The relative size of different cavaquinhos: left to right : - from Portugal - from Brazil - from Santo Antão CV - from São Vicente CV The Portuguese one is the same size as a soprano ukulele - the string length for all is about 37 cm.

Music on Cape Verde (which sounds very much like Portuguese and/or Brazilian music) is made in small groups with a guitar (violão), a violin, a (10 string) viola and a small cavaquinho. All the instruments are locally made.

The guitar (violão) looks usually very much like the normal spanish (or classical) guitar, with nylon strings. It often plays repeated riffs or bass-lines. The rhythm strumming of chords in this group is done by the cavaquinho and the viola de dez cordas, both with metal strings.

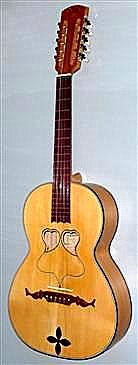

The viola de dez cordes ("10-string guitar") is made like a slightly smaller guitar.
It has two heart-shaped soundholes, so it looks very much like the viola da terra from the Azores; however it has only 10 metal strings in 5 courses, instead of 12. The difference with the similar looking viola amarantina from Portugal (also with 10 strings) is the shape of the bridge, which resembles the one of the viola da terra.

The tuning is guitar-like : aa dd' gg bb e'e'.

The viola de dez cordas is only used for strumming.

The example has scratch plates (here blueish coloured), but that is not common on the violas.

In Ireland folk music is very popular, and is often played in pubs; mainly using all kinds of acoustic instruments that are easy to carry about, like violins and flutes.
The plucked instruments include (of course) the mandolin, the small tenor banjo (in mandolin tuning) and the (steelstring) guitar.

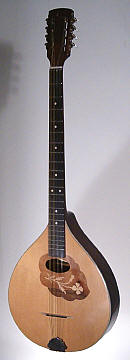

From the Greek bouzouki developed (with some influence from a long neck cittern) the irish bouzouki. Sometimes also called Irish cittern, or Celtic cittern, but nowadays those names refer to a 5 course instrument (see page Cittern).

The irish bouzouki is made with the body of a flat back mandolin. It has a long guitar-neck, and a small loose bridge.

The 8 metal strings in 4 courses run over a loose wooden bridge to a mandolin-like string fastener at the edge of the body.

Tuning varies between players : guitar-like, or mandolin-like, or some open tuning (like A D a d), etc.

The irish bouzouki is used (like all other plucked instruments in Irish music) to accompany each other and occasionally get a solo part.

Notice the confusing list of the related mandolins and cittern (see mandolins).

For lots of information about the Irish bouzouki see Han's website.
